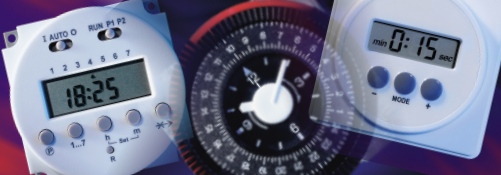

Programmable Timers 24 Hour/7 Day

Programmable Timers are compact digital time switches which provides precise timing with the flexibility of daily or weekly programming. Simple and fast setting by means of push buttons and display prompts. Programmable Timers Popular applications include: Heaters, filters, pumps, fans, signs, blowers, indoor and outdoor lighting, feeders, security/alarm systems, and process controls. Skip function used for skipping all the switching programs of the next calendar day. Reset function for clearing the whole switching program.

Programmable Timers Features:

Programmable Timers Specifications:

Setting Options: Time of day, Single Day, Repeat Programs for daily Recurring Switching, 1 2 3 4 5 (Monday through Friday), 1 2 3 4 5 6 (Monday through Saturday), 1 2 3 4 5 6 7 ( Monday through Sunday), 6 7 (Saturday and Sunday), Skip function for skipping all the switching programs of the next calendar day, Reset function for clearing the whole program

Relay Switch Rating: 16 Amps at 45ºC 10 Amps at 55ºC

Switching: SPST, SPDT

Operating Voltages: 120 VAC, 240 VAC, 24 VAC, 50/60 Hz, 12 VDC, 24VDC

Connections: 6.3 X 0.8 Tab Terminals

Mounting: Front Panel or DIN rail accessories available
