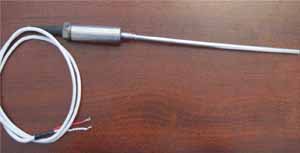

Compact RTD With Built-in Transmitter
Compact RTD With Built-in Transmitter
-
 Works with 10 to 36 VDC loop power
-
-
-
Various Types available: Pt100 - 200ºC 850ºC 50ºC, Pt1000 - 200ºC 200ºC 50ºC, Ni100 - 60ºC 180ºC 50ºC, Ni1000 - 60ºC 150ºC 50ºC
-
Input impedance: mV >= 10 MW
-
RTD excitation current: Typical 0.350 mA
-
Line resistance influence: mV <=0.8 uV/Ohm
-
Accuracy: RTD +/-0.1 % f.s.
-
Input calibration: RTD > of +/-0.1% f.s. or +/-0.2º
-
Low res: > of +/-0.1% f.s. or +/-0.15 W
-
Output calibration: Current +/-7 uA
-
Power supply voltage: 10 .. 32 Vdc
-
Reverse polarity protection: 60 Vdc max
-
EMC ( for industrial environments ) Immunity EN 61000-6-2 Emission EN 61000-6-4
-
RTD Dimension .125" to .375" OD available in various lengths
|
For Quick Delivery From Stock - CANADA & USA TOLL FREE: 1-800-279-9912
