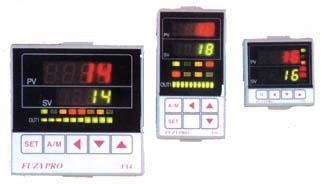

FuzyPro 1/32 DIN Fuzzy Logic Temperature/Process Controllers

FuzyPro, 1/32 DIN, Fuzzy Logic Temperature, Process, ControllersFuzyPro 1/32 DIN Fuzzy Logic Temperature/Process Controllers for controlling temperature, humidity, pressure, flow, pH, detecting voltage, current, power, and phase failure.

Fuzzy logic is an artificial intelligence technique that can make decisions based on vague or incomplete information. This type of control provides perfect control results. Though the basis is precise microprocessor technology, fuzzy logic uses linguistic descriptions to define input correlation's and expected outcomes. The result of fuzzy logic is that initial overshoot and excursions from the set point due to process disturbances are eliminated. The process can be controlled with minimum or no temperature variations.



1/32 DIN Fuzzy Logic Temperature/Process Controllers Features:

  • PID - FUZZY or ON/OFF control

  • Heating/Cooling + 2 Alarms

  • Field input selection TC, RTD, Linear

  • Outputs Relay, Pulsed DC, 4 - 20 mAmps

  • Dual display red / green + LED% output

  • Self tuning with inhibited overshoot

  • Low Panel depth 31/8" (80 mm)

  • 16 Ramp/Dwell Segments option

  • Heater Saver power limit function

  • Multiple alarms on a single output

  • Scalable linear input

  • Rapid Cycling controls faster systems

  • Customized operator Interface

  • Set Point Range limit

  • Plug in from front

  • Operator Lockout Security setting



1/32 DIN Fuzzy Logic Temperature/Process Controllers Specifications:

Power supply

AC 85 to 265 Volts 50/60 Hz

Power consumption

About 4 VA

Memory element

EPROM 10 Years Data Retention

Display accuracy

Within 0.2% of Displayed Value + 1 Digit

Sampling time

250 ms

Isolation

Input to output Separate Isolation

Dielectric

1000 V AC 1 Min

Isolation resistance

DC 5OO V < lO M ohm

Operating temperature

14 to 122 Deg F

Humidity range

0 to 90 % RH Non Consuming



Ordering Information PART #:         A   B   C   D   E   F   G EXAMPLE:   F16 1   0   1   2   0   0

A: Model

F 16 = 1/16 DIN 48 mm X 48 mm PID/Fuzzy Control F 18 = 1/8 DIN 48 mm X 96 mm PID/Fuzzy Control F 14 = 1/4 DIN 96 mm X 96 mm PID/Fuzzy Control F 16P = 1/16 DIN 48 mm X 48 mm PID/Fuzzy Control 8 or 16 Steps programmable F 18P = 1/8 DIN 48 mm X 96 mm PID/Fuzzy Control 8 or 16 Steps programmable F 14P = 1/4 DIN 96 mm X 96 mm PID/Fuzzy Control 8 or 16 Steps programmable

B: Output 1 control output type

0 - None   1 - Relay contact, SPST 3A/240 VAC 2 - 3 to 32 DC voltage pulse, 20 VDC/20 mA 3 - Current, 4-20 mA 4 - SSR Output 1.1 Amp 240 Volts

C: Output 2 control output type

0 - None 1 - Relay Contact, SPST 3A/240 VAC 2 - 3 to 32 DC voltage pulse, 20 VDC/20 mA 3 - Current, 4-20 mA   4 - SSR Output 1.1 Amp 240 Volts

D: Alarms

0 - None 1 - One alarm Relay 3A 240 volts SPST 2 - Two Alarm Relays 3A 240 Volts SPST 3 - Three Alarms only available with single control Output or F14

E: Transmitter

0 - None 1 - 0-20 mA (adjustable) 2 -12 volts DC output Transducer power supply

F: Second Input

0 - None 1 - 4 - 20 mAmps remote Setpoint 2 - 0 to 20 mAmps remote Setpoint 3 - Heater Break Alarm
