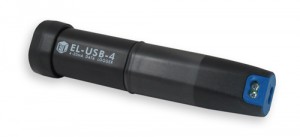

USB Data Logger EL-USB-4 4-20mA Current Loop USB Data Logger

USB Data Logger, EL-USB-4, 4-20mA Current Loop USB Data LoggerEL-USB-4 4-20mA Current Loop USB Data Logger

  • 4-20mA current loop measurement range

  • Logging rates between 1s and 12hr

  • Stores 32,510 readings

  • Connection via two screw terminals

  • USB interface for set-up and data download

  • User-programmable alarm thresholds

  • Status indication via red and green LEDs

  • Supplied with replaceable internal lithium battery and Windows control software



This data logger measures and stores up to 32,000 current loop readings over a 4-20mA d.c. measurement range. The data logger features a pair of screw terminals and is supplied complete with flashing red and green LEDs. The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PCs USB port and running the purpose designed software under Windows 2000, XP, Vista & 7. The data can then be graphed, printed and exported to other applications.



The data logger is supplied complete with a long-life lithium battery. Correct functioning of the unit is indicated by a flashing red and green LED. The data logger features a pair of screw terminals and is supplied complete with a set of measurement leads terminating in crocodile clips.



This is a popular part, normally stocked in high quantity and suitable for new designs.



Software

The EL-USB-4 is supplied with a mini-CD containing the configuration software. This is compatible with Windows XP, Vista and 7 (including 64-bit operating systems). Note, the software is not compatible with Mac or Linux.



EL-USB-4 Brochure
