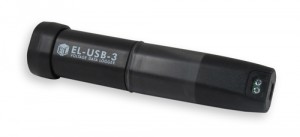

USB Data Logger Lascar Easylog EL-USB-3 Voltage USB Data Logger

USB Data Logger, Lascar, Easylog, EL-USB-3, Voltage, Data LoggerEL-USB-3 Voltage USB Data Logger

  • Voltage USB data logger

  • Configuration software

  • Selectable

  • LEDs indicate logger status

  • 32,510 reading memory


This data logger measures and stores up to 32,510 voltage readings over a 0-30V d.c. measurement range. The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PCs USB port and running the purpose designed software under Windows 2000, XP, Vista & 7. The data can then be graphed, printed and exported to other applications.


The data logger is supplied complete with a long-life lithium battery. Correct functioning of the unit is indicated by flashing red and green LEDs. The data logger features a pair of screw terminals and is supplied complete with a set of measurement leads terminating in crocodile clips.


The data logger configuration software is compatible with Windows 2000/XP/Vista/7. This is a popular part, normally stocked in high quantity and suitable for new designs.


Application Information

The EL-USB-2 is suitable for a wide variety of applications, these include:

  • Pharmaceutical fridge monitoring

  • Environmental and weather monitoring

  • Agricultural and livestock

  • Food & drink

  • Building & site monitoring

  • HVAC



The EL-USB-3 is supplied with a mini-CD containing the configuration software. This is compatible with Windows XP, Vista and 7 (including 64-bit operating systems). Note, the software is not compatible with Mac or Linux.


EL-USB-3 Brochure
